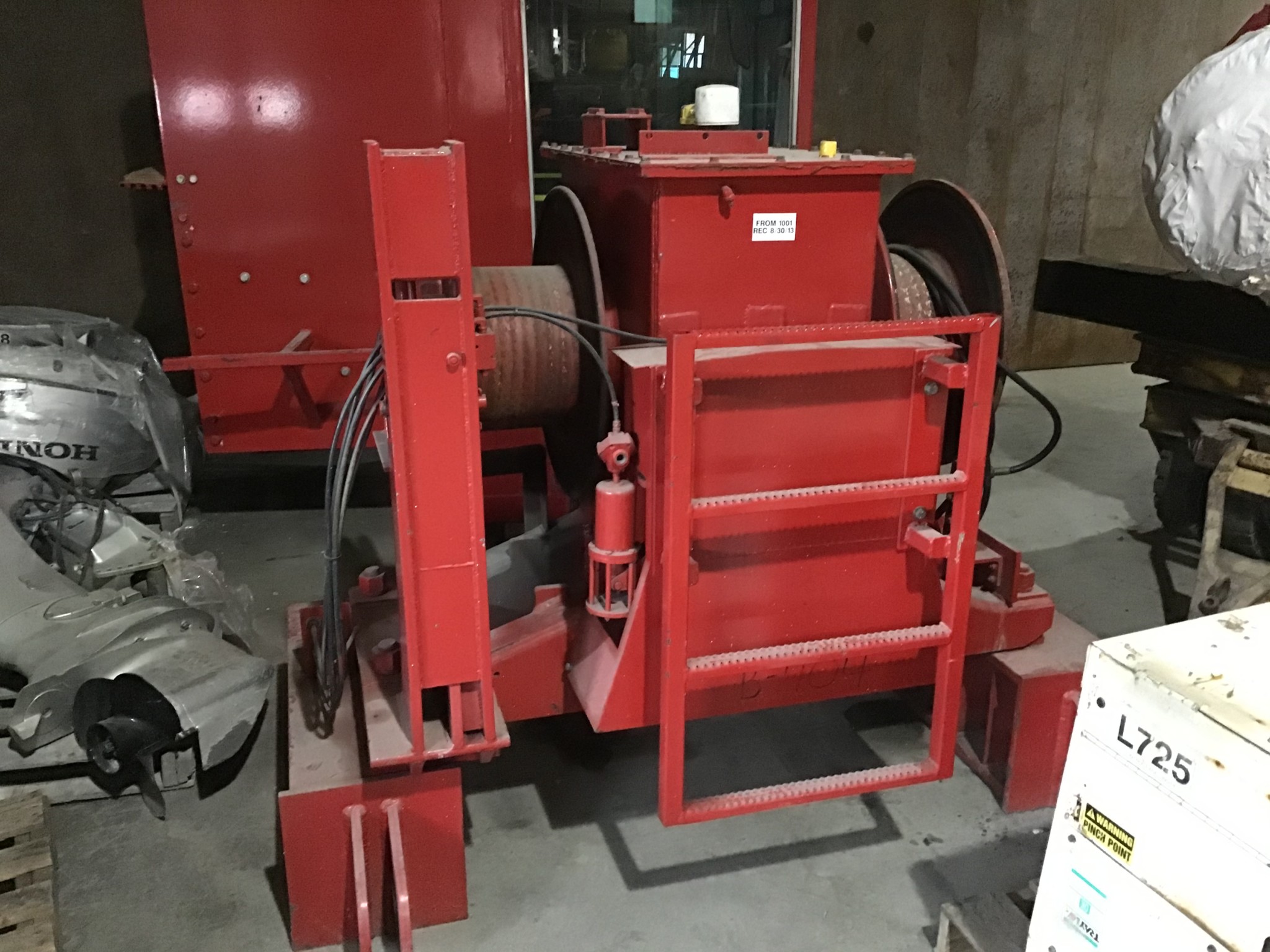

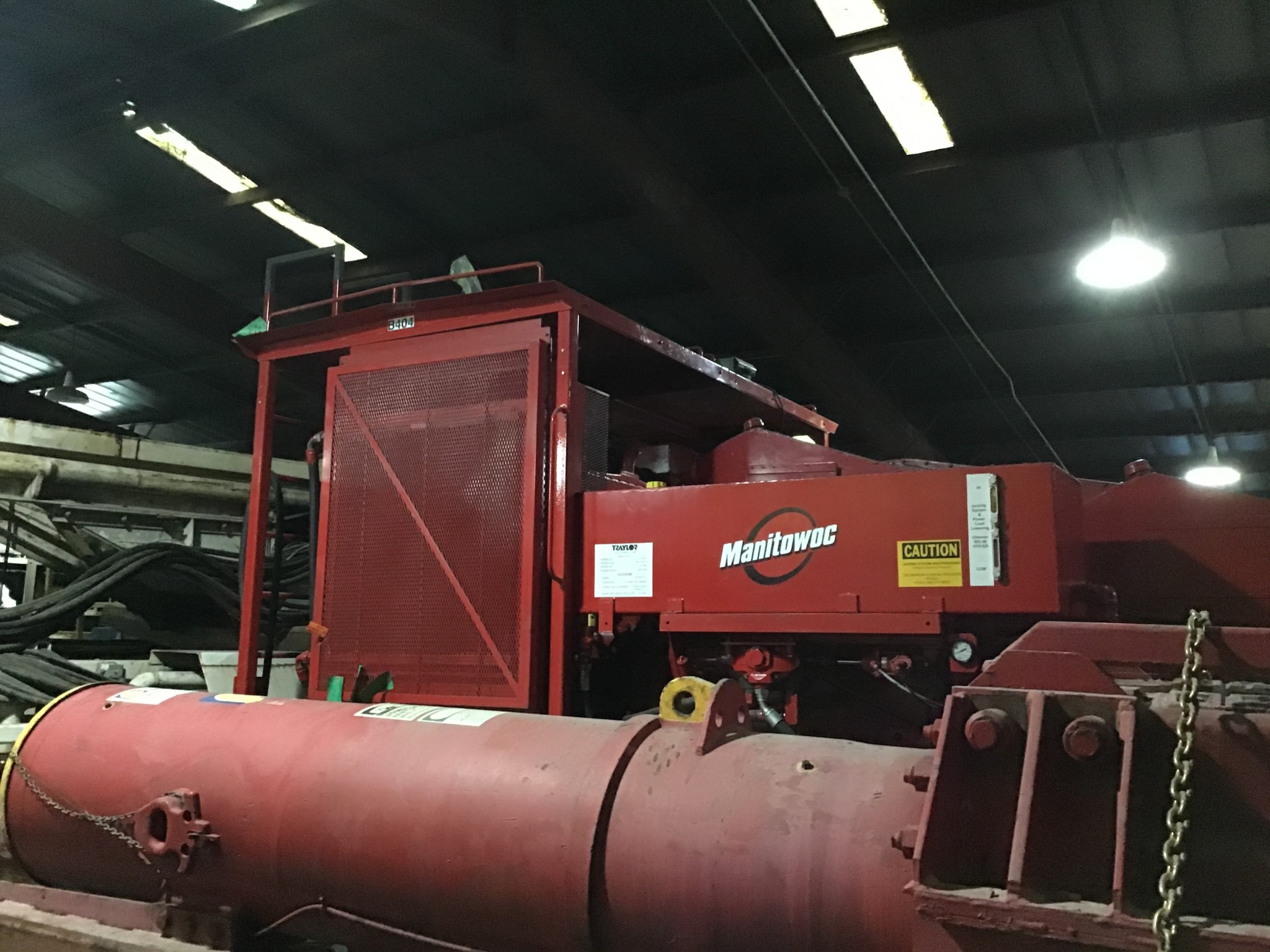

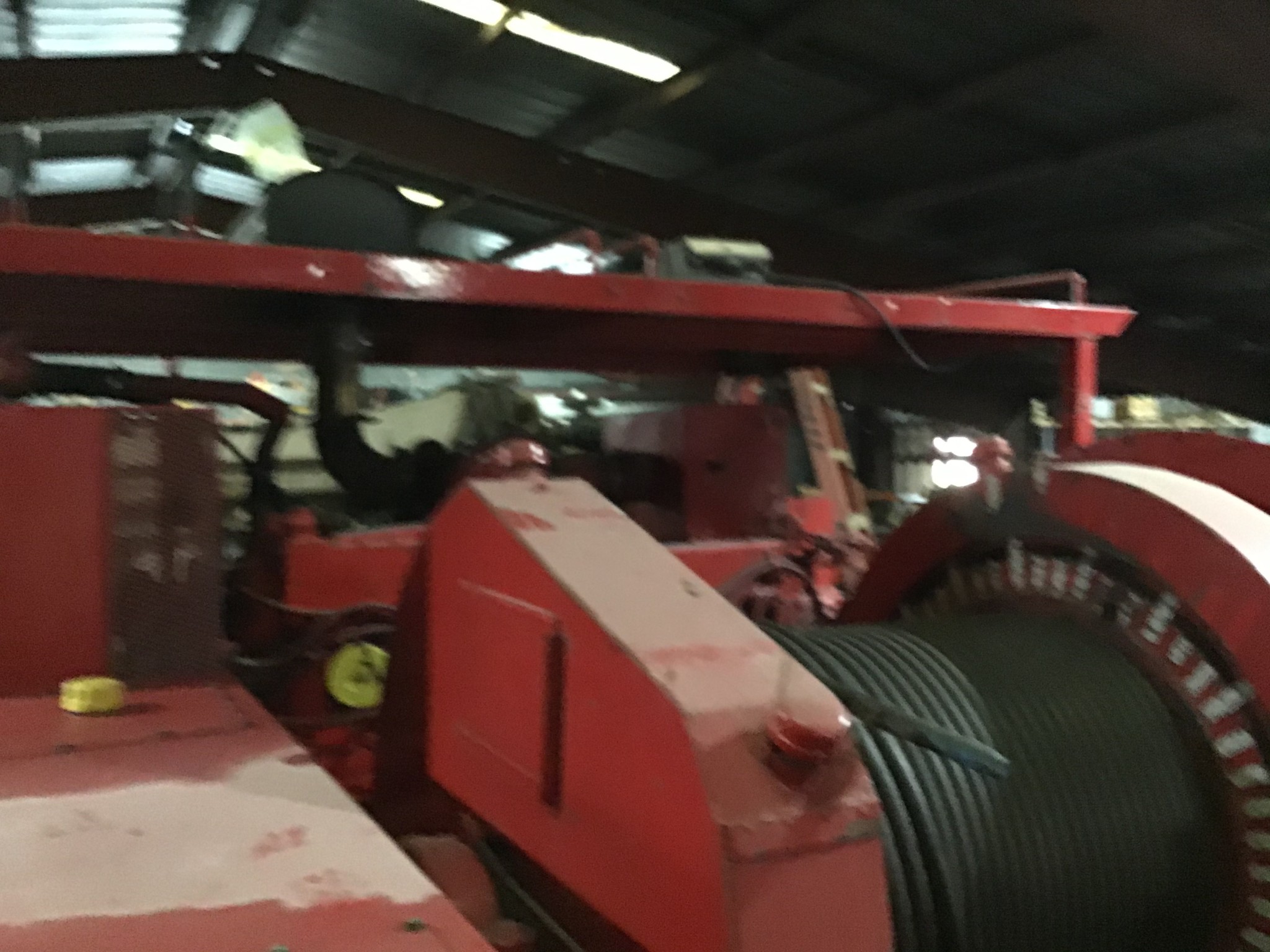

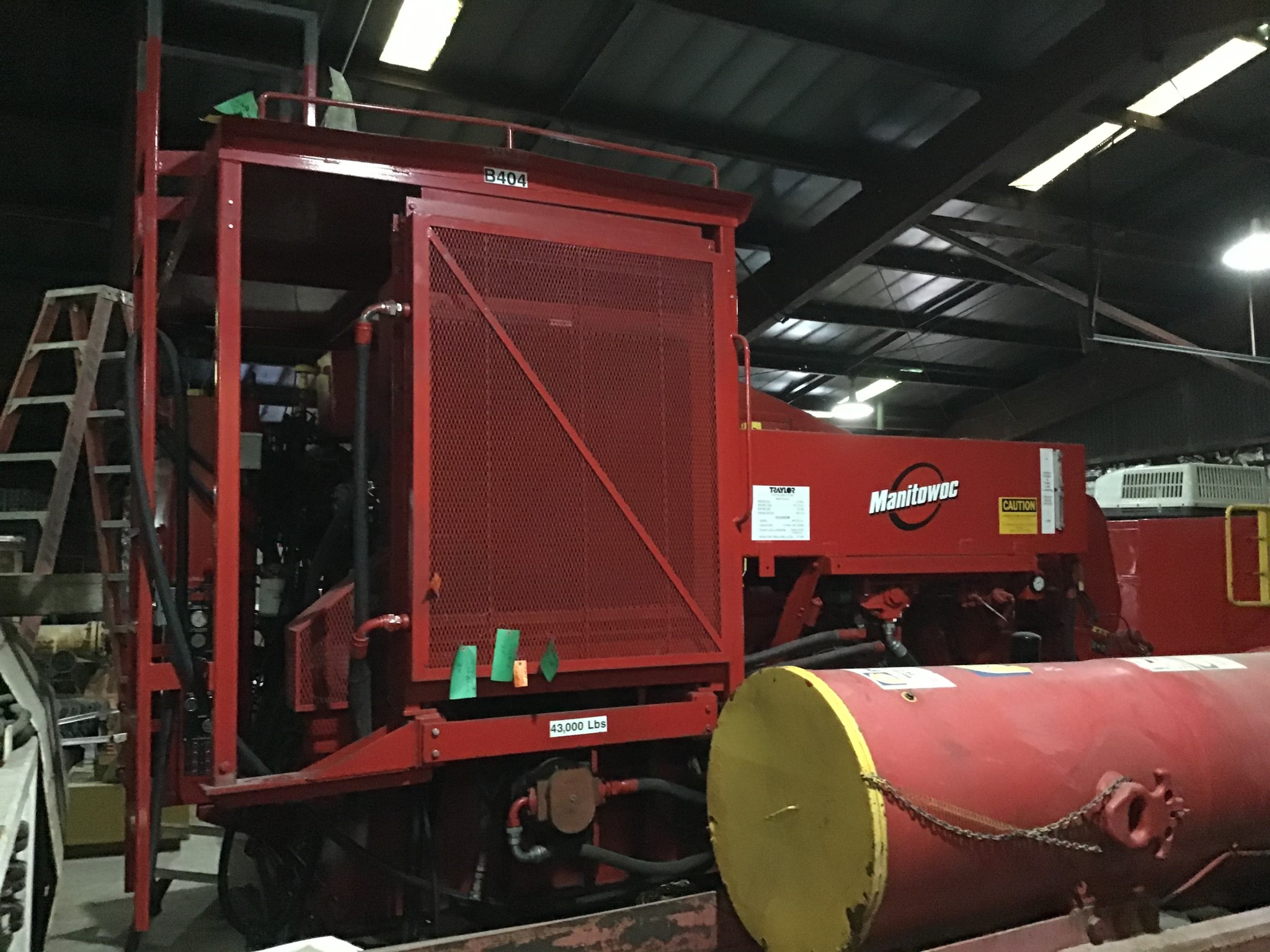

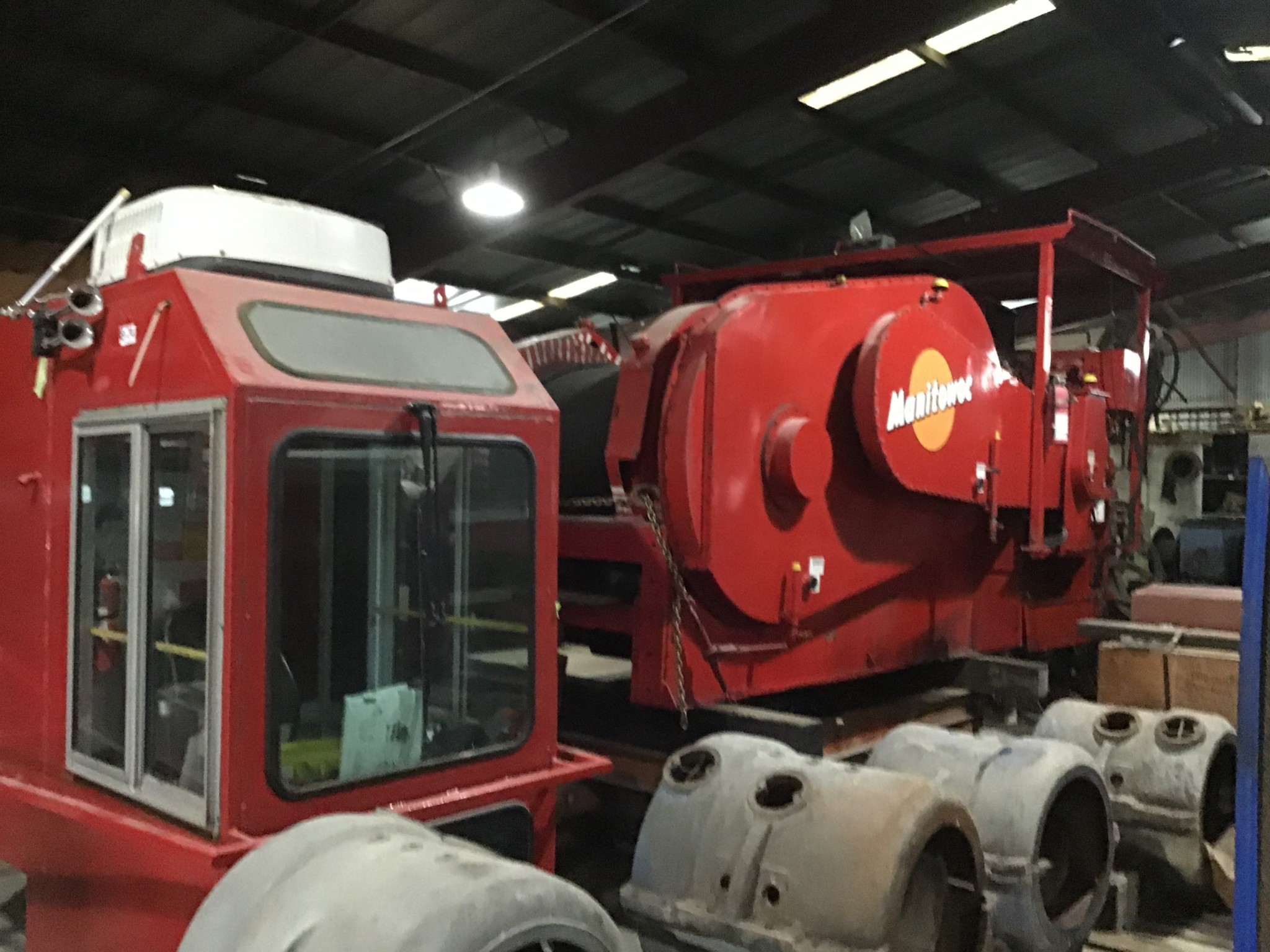

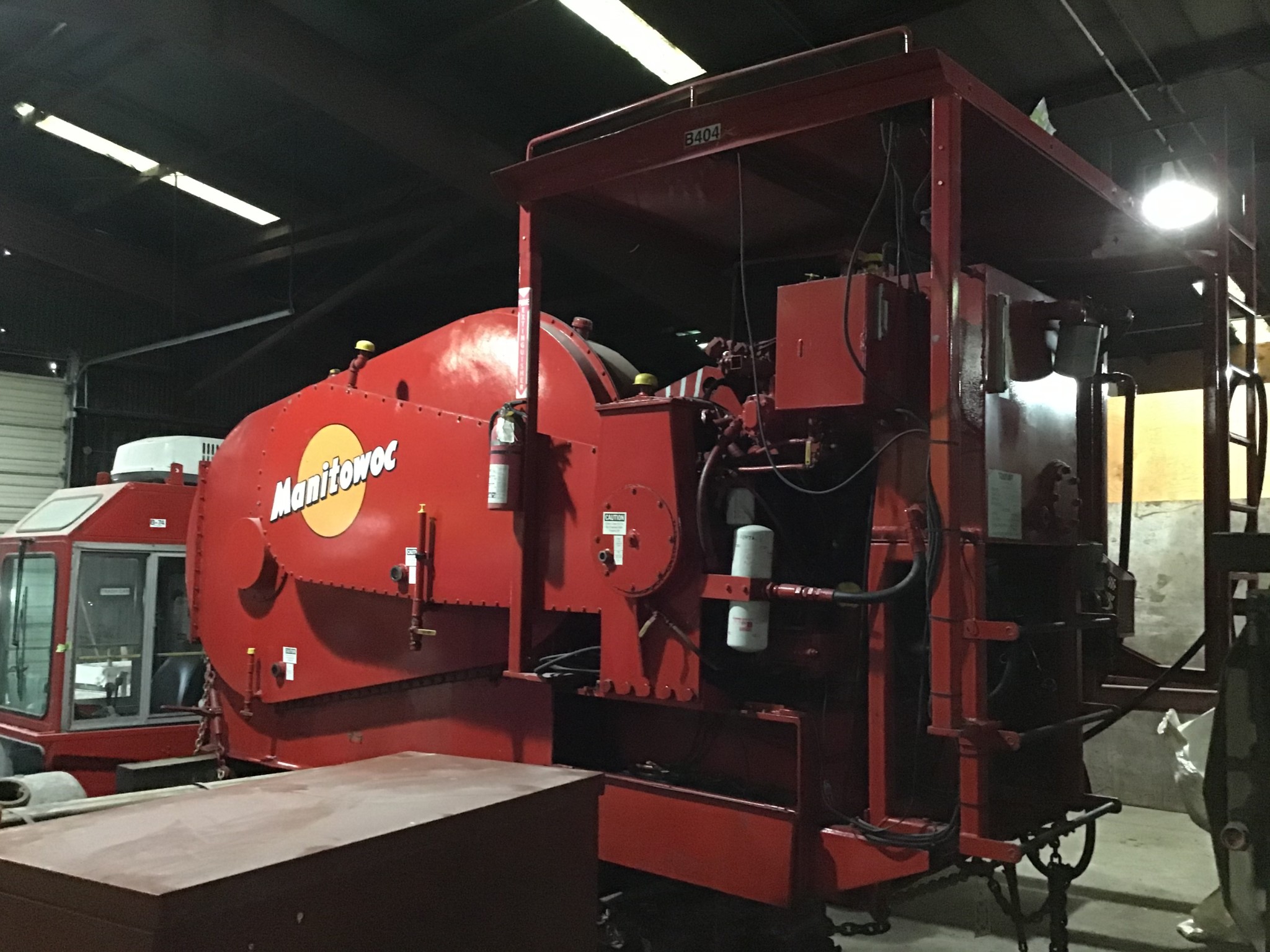

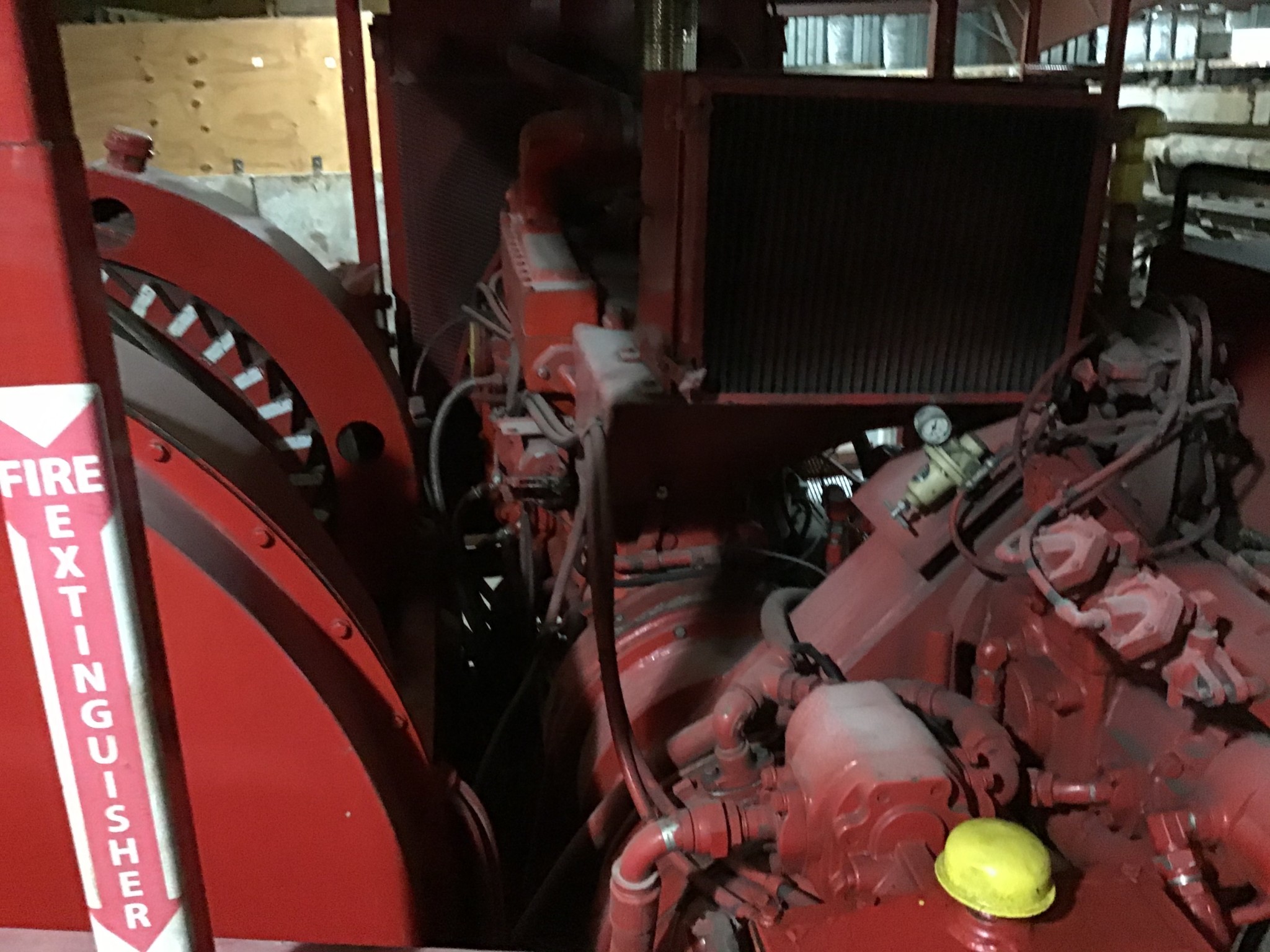

Power by Manitowoc 2 drum 360 hoist w/ 1-1/8” cable on drums

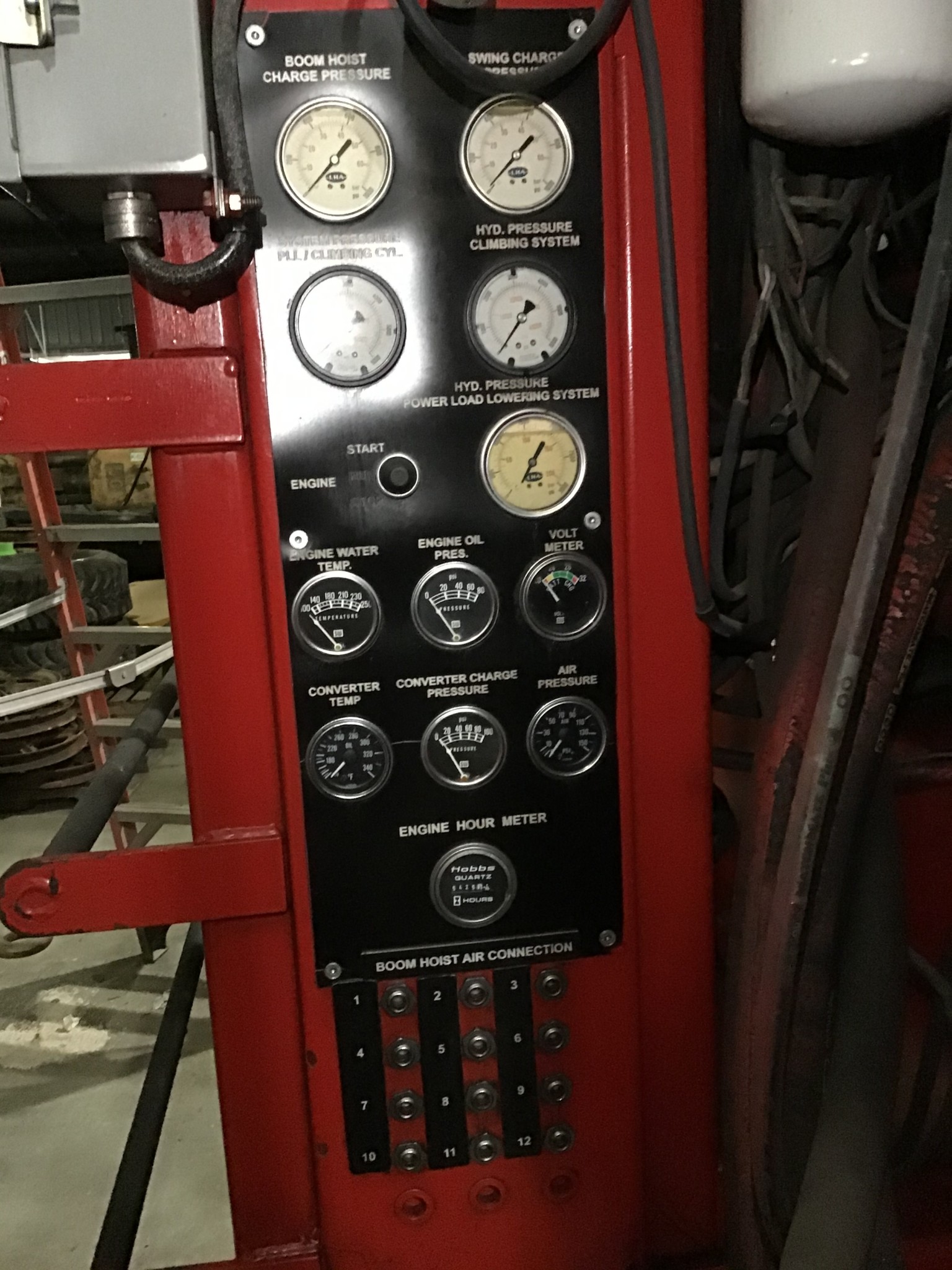

Air controls

40,000 line pull drums

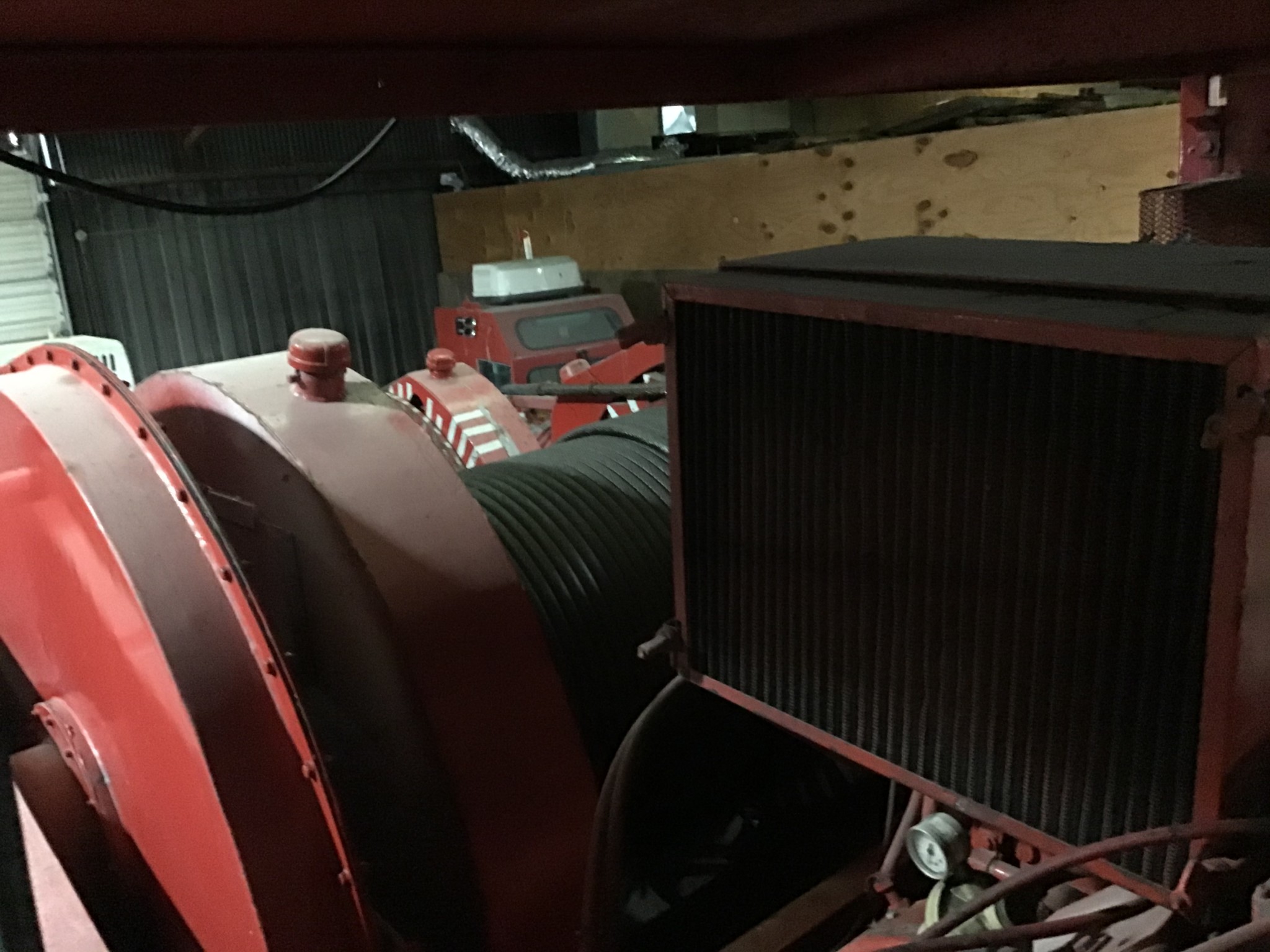

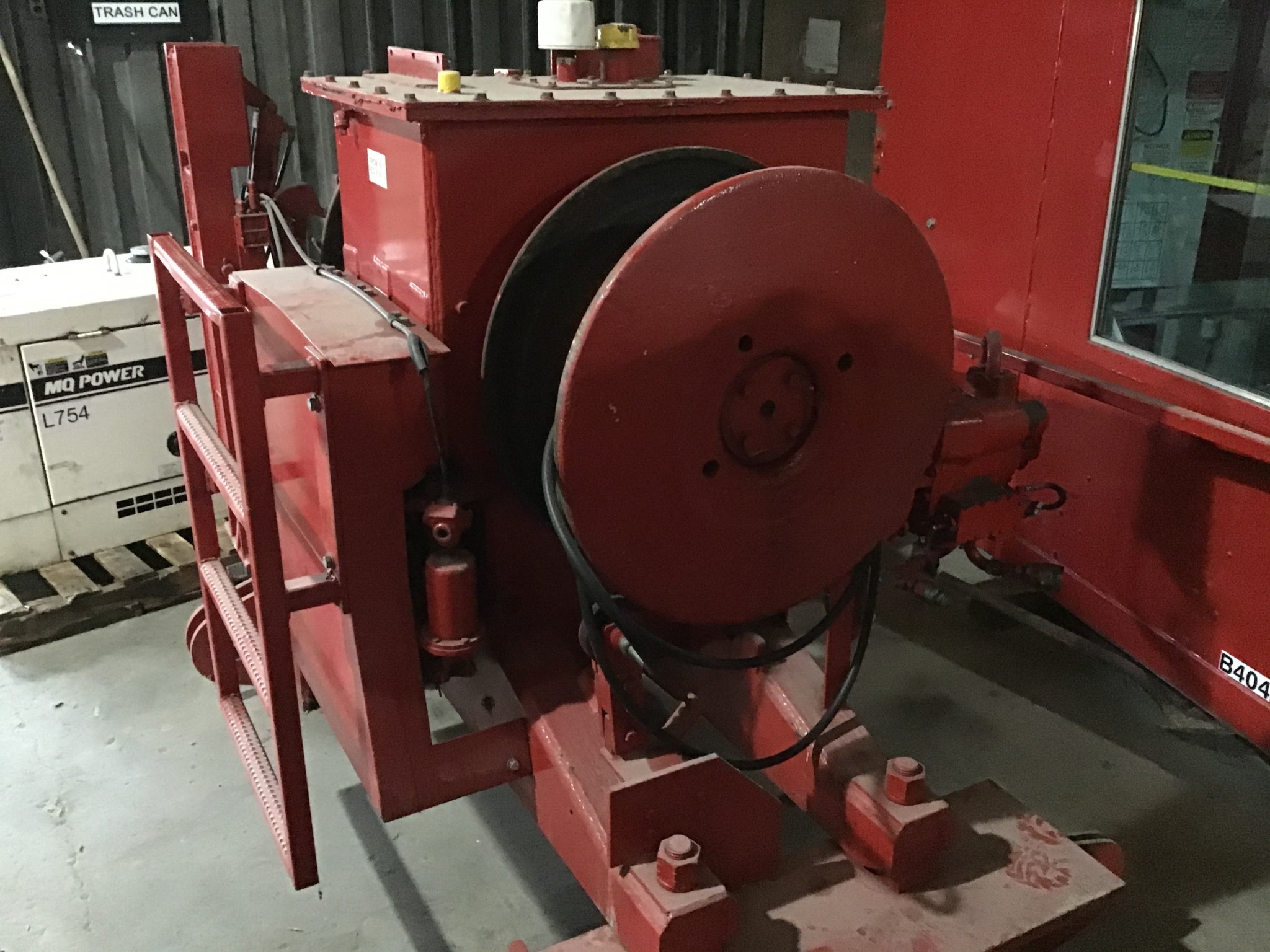

Boom hoist is double drum 1” cable from a Manitowoc 3900W

Manitowoc power load lowering Hyd

Crane Smart load indicators.

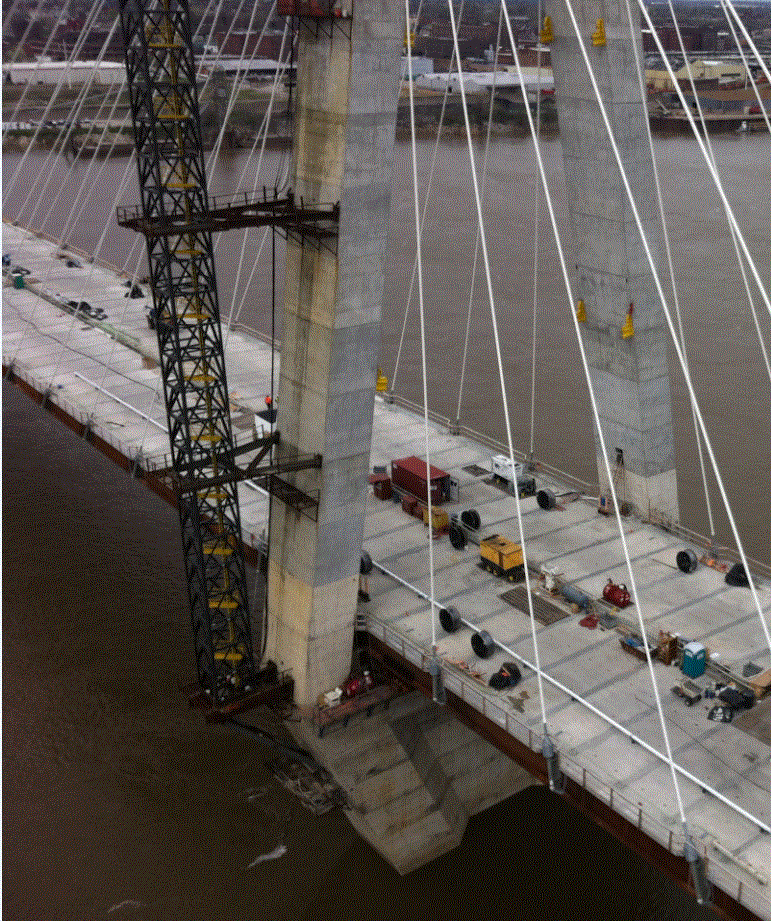

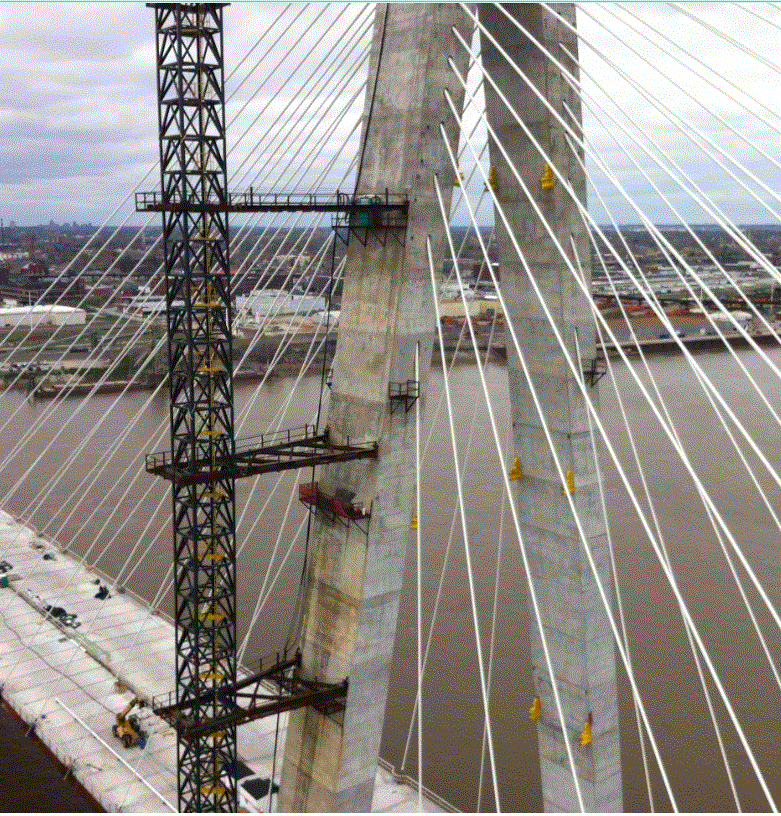

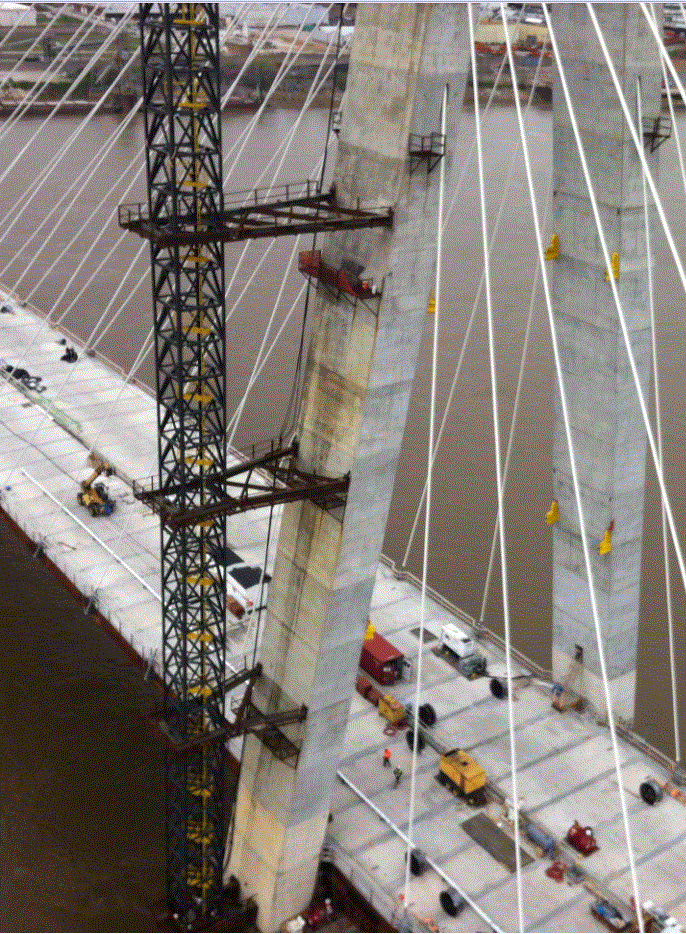

297′ Tower Sections- 22- H Pile Style Tower Sections (13’6” per section) located in Wickliffe, KY

Jacking device external hyd powered from 390 hoist.

W/ two external walkways to access bolt up when jacking up or down.

1. Trolly beam to roll tower section into place when jacking.

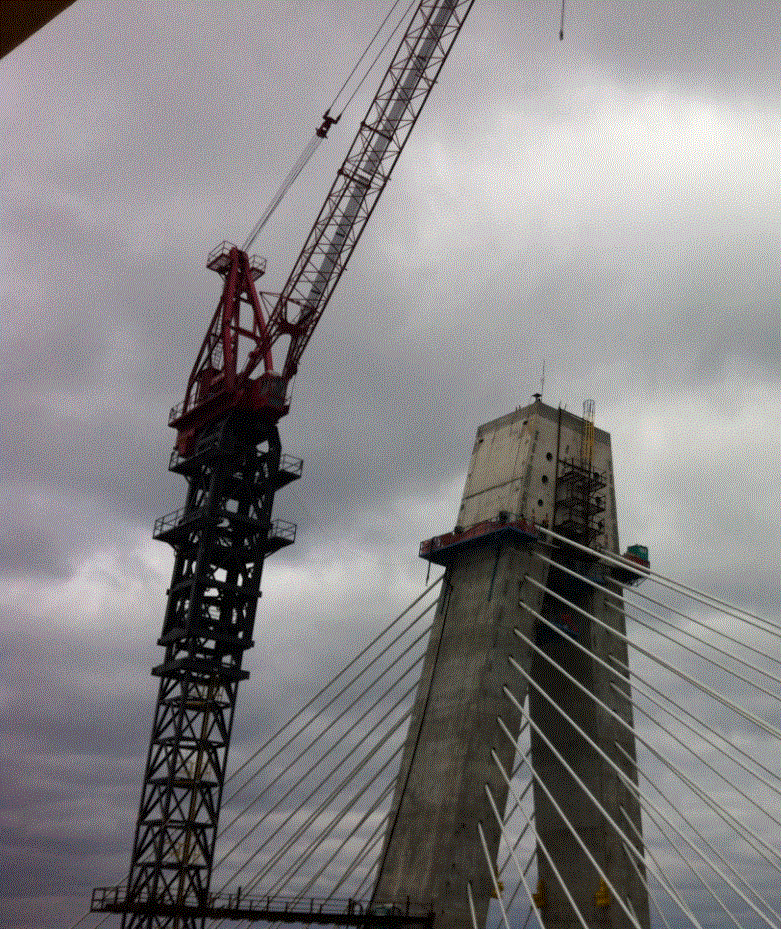

157’ boom with built on aux point to boom top.

Tip- 42’6”, 79T-43-2 located in Wickliffe, KY

Butt- 47’5”, 79B-48-2 located in Wickliffe, KY

Insert- 45’7”, 79-45-2 located in Wickliffe, KY

Insert- 22’6”, 79-X-X located in Evansville, IN

Walkway down top of boom for access to tip.

Rotating bed. With 2 Staffa swing motors

House bearing trip row of roller bearings. Rebuilt 2000

Three moveable counter weights

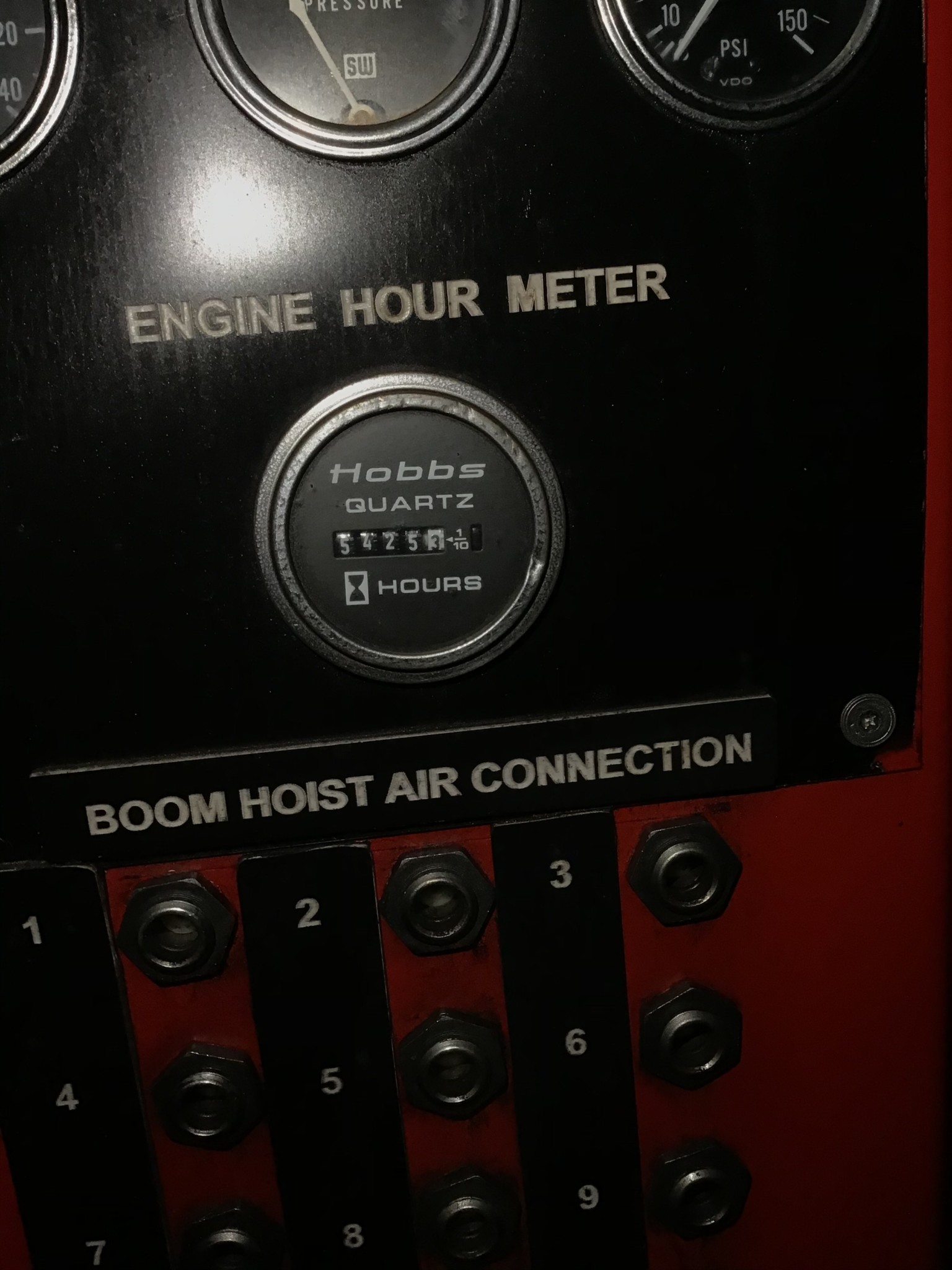

Hours 5,425
